Moldflow Analysis Service

Moldflow Analysis Service

  • 2021-11-15

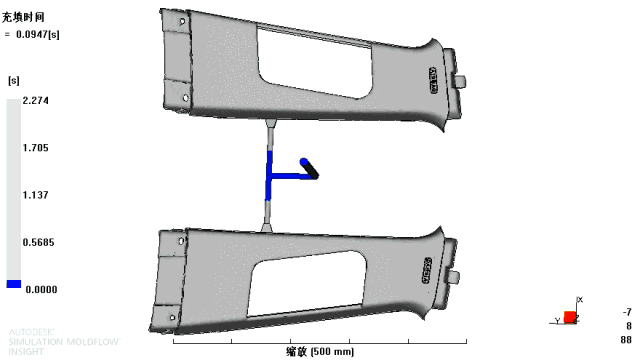

Mold flow analysis is to use current CAE software (Moldflow, C-Mold, Z-Mold, etc.) to perform finite element simulation on the plastic parts injection molding, packing, cooling, and warping processes.

Mold flow analysis steps

First, the continuous parts are discretized by meshing. A limited number of easy-to-analyze elements are used to describe complex objects, and the elements are connected by a limited number of nodes.

Finite element solution

According to the boundary conditions set by the user, the solution is solved by the linear equations composed of fluid mechanics, thermodynamics and state equations.

Lyter Engineering Provide mold flow analysis service to each of our plastic injection mould project.
